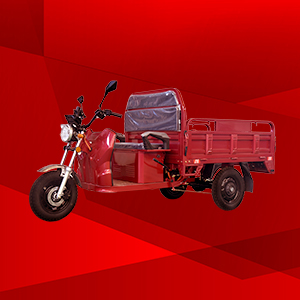

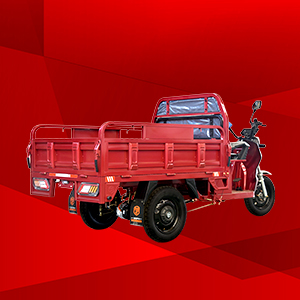

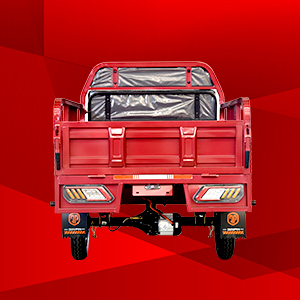

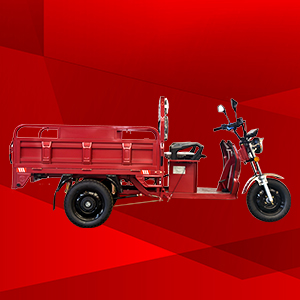

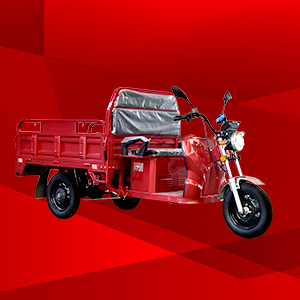

Warframe  Electric Tricycle

•

Dimensions (mm) 2880×1130×1315

Cargo Box Size (mm) 1500×1050×300

Wheelbase (mm) 1980

Wheel Track (mm) 870

Backrest form Single Curb weight(kg) 185

Minumum ground clearance ≥150

Minimum turning radius（m） ≤4

Rated Loading capacity (kg) 300

Max speed（km/h） 35

Maximum Climbing Slope (%) ≤20

battery 60V45AH

Motor, controller (w) 60V1000W

Economic speed range (km) 50-55

Charging time (h) 6～8h

Front shock absorption Φ33 Outer spring Drum shock absorber

Rear shock absorption 50×85 pieces leaf spring

Front/rear tire specifications Front：3.5-12/rear：3.75-12

Front/rear Rim type Front/Rear ：iron wheel

Handlebar type ●

 ront/rear brake type Front/Rear : Drum

Parking brake type handbrake

Rear axle structure Integrated gear shifting rear axle

headlight LED

High and low speed function ●

 LCD instrument ●

Battery connection cable ●
